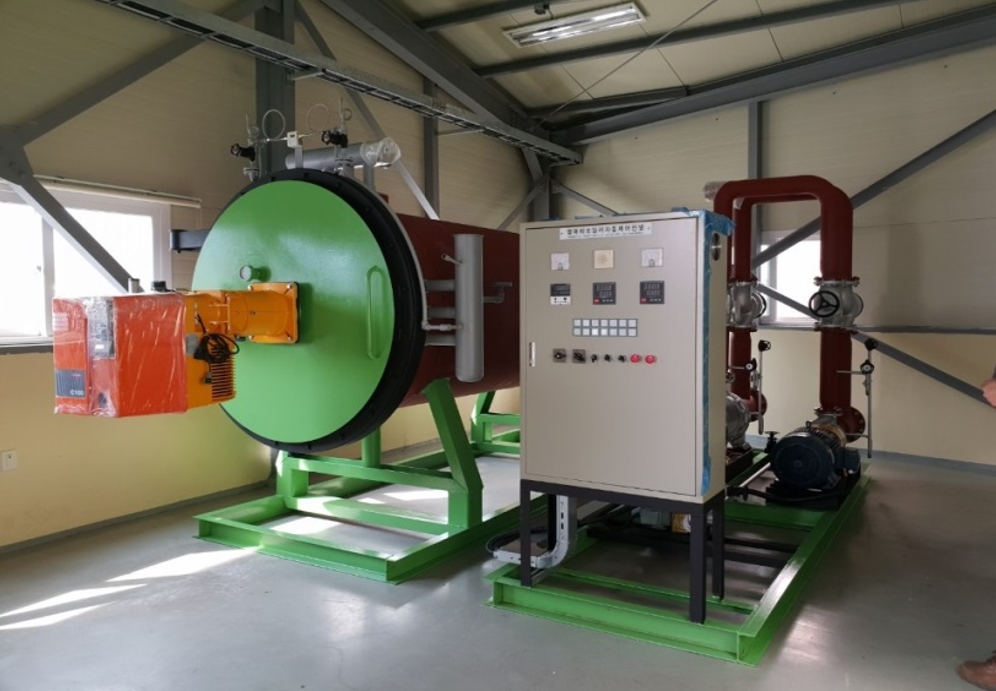

Heat Transfer Boiler

High efficiency heating “oil boiler” is energy saving practice.

CHARACTERISTICS / Features
1. As there is no internal corrosion, its life is semi-permanent.
2. Precision temperature control.
3. Superb stability producing high temperature at low pressure.
4. The perfect safety mechanism enables unmanned operations.
5. Both low and high temperature available. (Temperature range
: -40 ~ 600 ℃) 6. The sealed cycle system maximizes energy saving.
7. The compact system and structure enable installation even in narrow spaces. Minimize the required floor space with a compact system design.
8. Will not freeze or breakdown in extreme temperature environments. 9. No industrial water required.
10. Reduce production cost through fuel expense reduction.

■ SUMMARY / Overview

This advanced design boasts innovative features that enhance thermal efficiency, extend the life of the heat transfer fluid and heating tubes, and ensure safety. The boiler’s combustion chamber is designed to match the flame size, increasing thermal efficiency and facilitating cleaning. The three-pass combustion gas flow prevents exhaust heat loss and achieves a compact structure, making it an ideal heat transfer boiler. The multi-row monoline design eliminates heat transfer fluid carbonization, extending the boiler and heater lifespan to over 10 years. This unique design ensures sustained high efficiency, achieving over 90% efficiency when an air preheater is installed. The rational layout of the heat transfer surfaces prevents heat transfer fluid oxidation even at high temperatures. Complete safety and automatic control systems enable fully unmanned and automatic operation. The compact design allows for easy installation even in confined spaces.
