Gas Burner

Key features

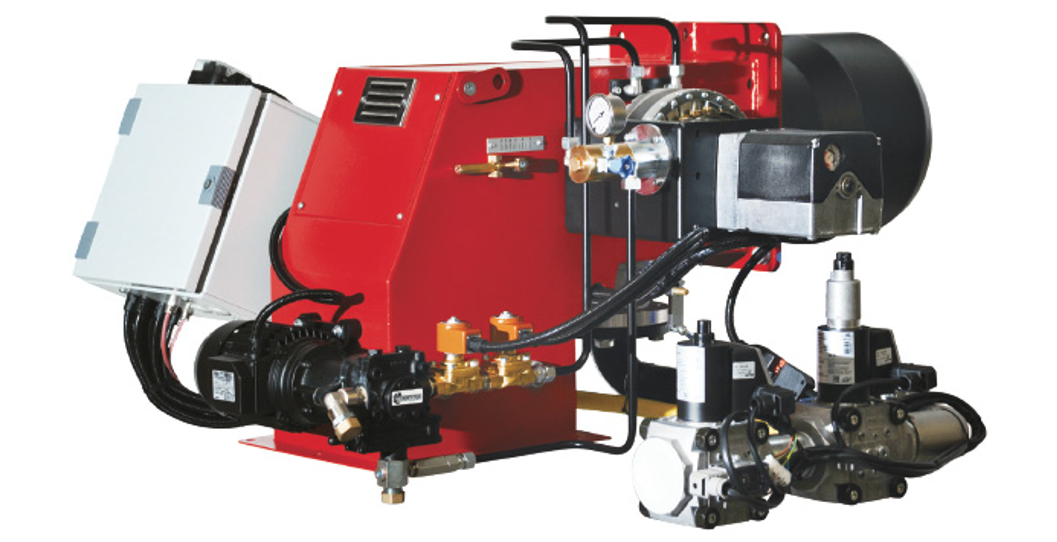

1. Ecoflam’s TS-type [separate burner] is a commercial and industrial combustion solution.
2. The TS-type separate burner can be operated with combustion air from an air preheater, allowing for energy-saving use (maximum preheating air temperature: 200°C).
3. It supports an inverter control system
. 4. The TS-type model is easy to maintain.
5. The burner can be assembled with air duct connections in different layouts.
6. The TS-type burner is suitable for all site conditions when installed, utilizing existing blowers. It can also be manufactured to meet customer requirements for air preheaters, economizers, high-pressure combustion chambers, or industrial applications.
7. It operates with NOx [nitrogen oxides] below 40 ppm in any environment. [O²: 4% standard]

Components
1. Combustion head
2. Air system block
3. Separate ventilator
4. Control panel assembled on the burner or remote switch cabinet(option)
5. Gas train (gas burner)
6. Gear pump (oil burner)
7. Preheating pump (heavy oil burner)

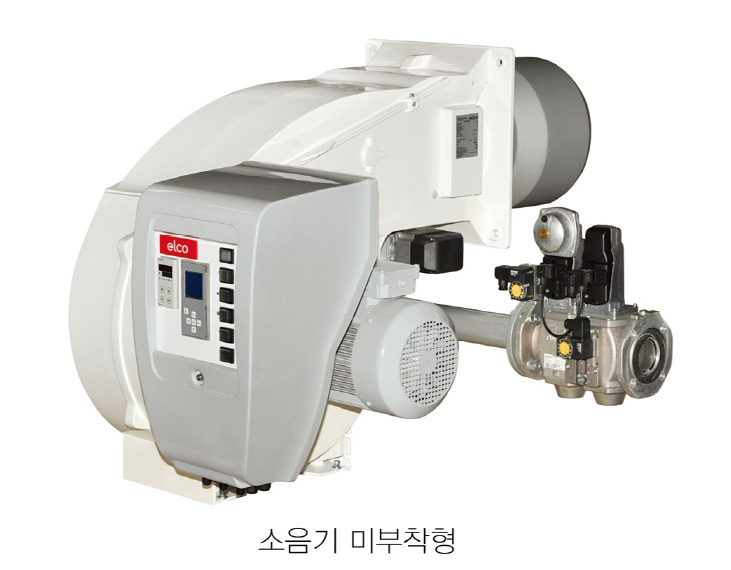

Key features
1. c
2. Easy installation and excellent durability with aluminum body.
3. Simple electrical wiring allows for easy maintenance.
4. Separate gas train installation simplifies burner assembly.
5. Can be configured and manufactured to suit major boilers and industrial applications based on the selected type of application and fuel characteristics.
6. Flame length can be reduced by up to 10-50% depending on the furnace pressure and size.
7. Operates under 40PPM of NOx [nitrogen oxides] in any environment. [O²: 4% standard]

Components
BBCH : Burner Body with Combustion Head
Silencer : OPTION
GT : Gas train separate
KIT & ACS : Kits and accessories according to local rules installation

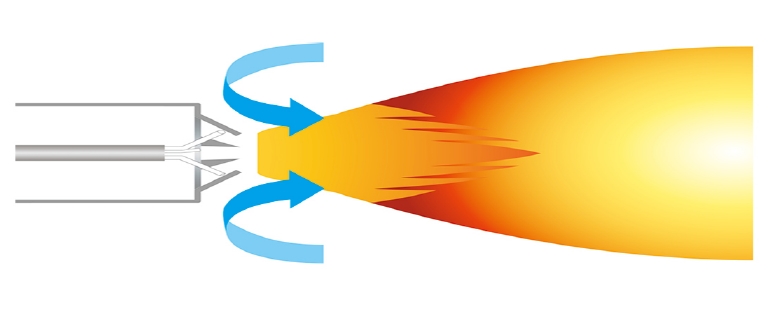

Combustion:
The unique combustion structure allows operation at NOx [nitrogen oxides] levels below 40 ppm in any environment. [O²: 4% standard]

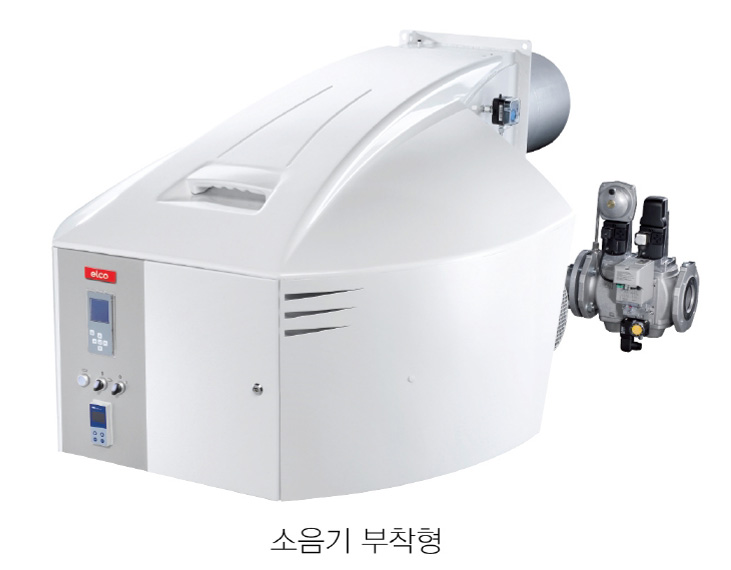

The acoustic
silencer has a unique and compact design, allowing it to operate at a noise level of less than 75 dB.

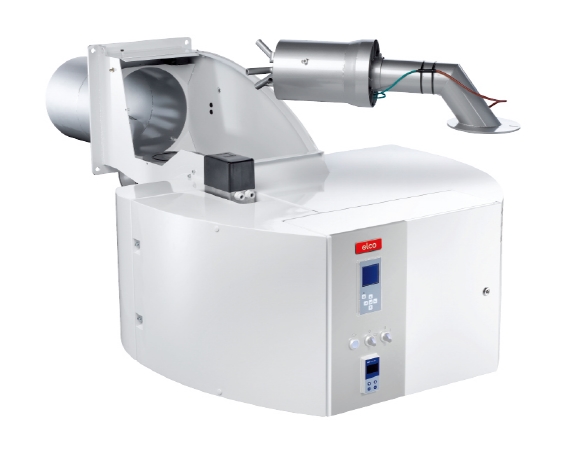

Maintenance
The burner is designed to be simple and time-saving by installing a top cover plate to facilitate maintenance. The burner structure does not deform, so it returns to its original position exactly after maintenance, and fuel efficiency does not change, making it reliable.
